IEEE802.11a

IEEE802.11b

IEEE802.11g

IEEE802.11n

IEEE802.11ac

IEEE802.11ax

IEEE802.3

IEEE802.3u

IEEE802.3ab

2.4GHz frequency band: 574Mbps

5GHz band: 2402Mbps

5G NR SA：n1/n28/n41/n77/n78/n79

5G NR NSA： n41/n78/n79

LTE-TDD：B34/B38/B39/B40/B41

LTE-FDD：B1/B2/B3/B5/B7/B8/B20/B28

WCDMA：B1/B2/B5/B8

3 x 10/100/1000M adaptive WAN/LAN ports, support Auto MDI/MDIX

Reset button

Easy to expand buttons

SYS system indication

Link/Act indication for each port

Bare metal size (length×width×height): 150*150*82.3mm

Packing size (L×W×H): 200.5*200.5*149mm

Bare weight: 0.6kg (single, excluding accessories and packaging)

Weight: 0.96kg (single unit, including accessories and packaging)

Wireless setup

Guest network settings

The network status of the mobile network/WAN port

LAN port network status

Device information

Real-time internet speed

speed limit

Time management online

Disable the device

Wireless bridging

Guest network

Signal conditioning

The IP address is bound to the MAC address

Administrator qualifications

AP isolation

Virtual servers

DMZ host

DDNS

TP-LINK ID INFORMATION

Internet settings

Wireless setup

Traffic management

LAN port settings

Software Upgrades

Change the administrator password

Back up and onboard configurations

Reboot and factory reset

System logs

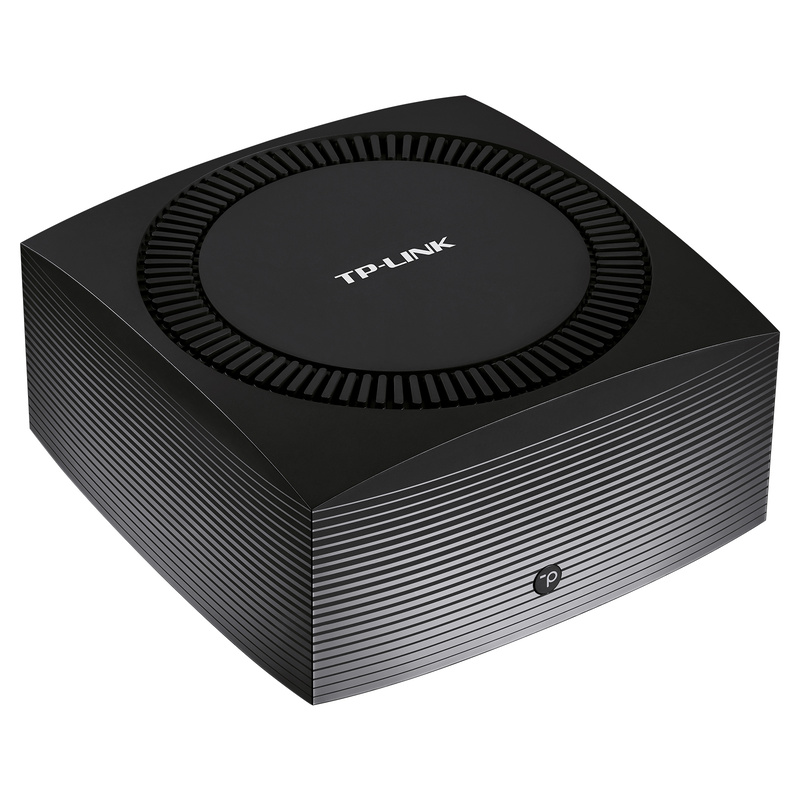

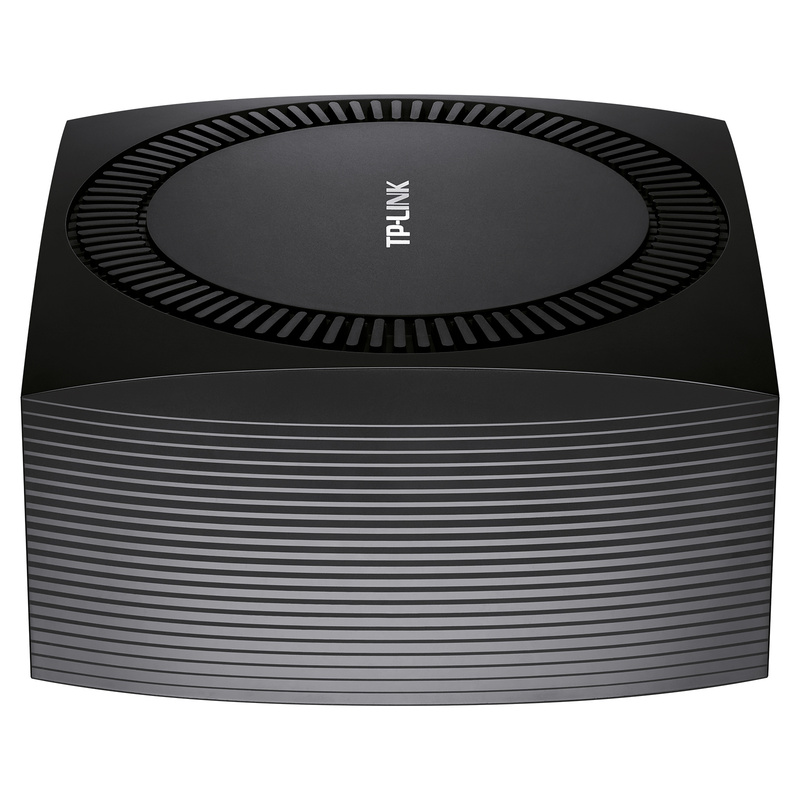

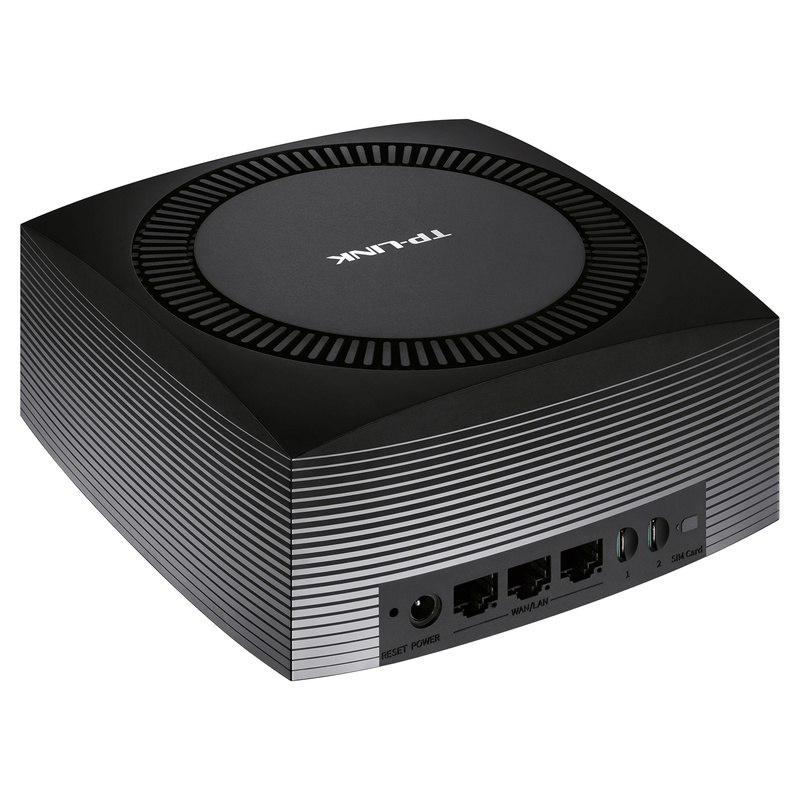

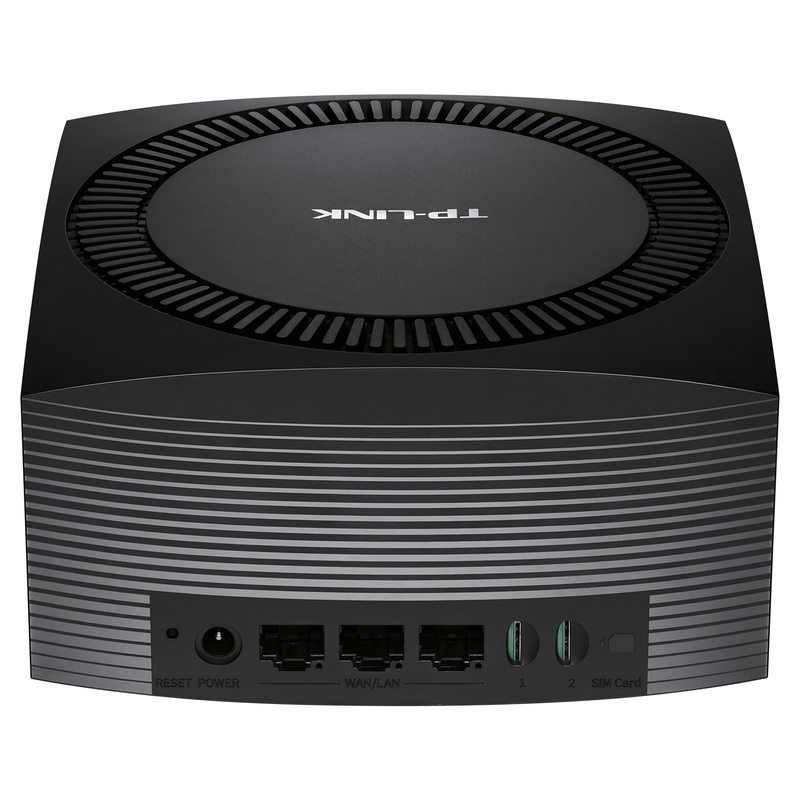

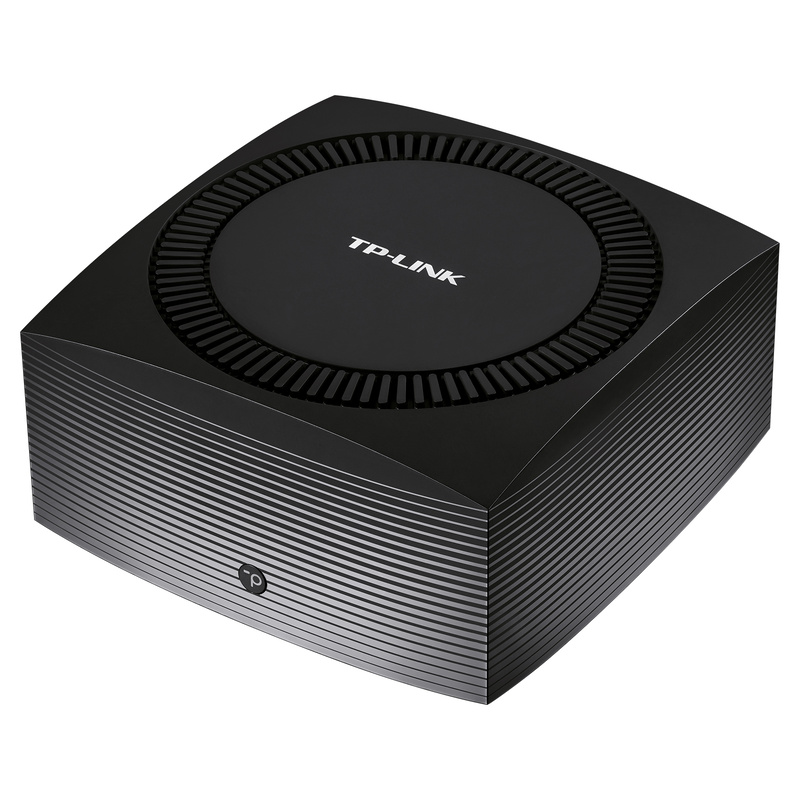

5G wireless router TL-TR970G

Power adapter

User Manual

Warranty card

Operating temperature: 0°C to 40°C

Storage temperature: -40°C to 70°C

Operating humidity: 10% to 90% RH non-condensing

Storage humidity: 5% to 90% RH non-condensing
